300L 500L Micro Brewery Equipment Beer Brewery Machine for sale

FOB Reference Price:Get Latest Price
$25,000.00 - $36,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
1000L
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Warranty:
3 years
After-sales Service Provided:
Field maintenance and repair service
Place of Origin:
China
Brand Name:
METO
Voltage:
380v
Weight:
150kg
Processing Types:
Alcohol
Certification:
CE/ISO
Dimension(L*W*H):
1260*2350mm
Power(W):
0-80kw
Applicable Industries:
Hotels, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops
commodity:
beer equipment
Product Certification certification
CE Certified.
Valid from 2016-08-16 until 2021-08-15
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.LCL/FCL(20GP/40GP/40HQ)
2.Packed with plastic film in fumigation free wooden case or fixed with iron frame
3.Up to export standard, suitable for delivery
4.Customer's requirements available
Port
QINGDAO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

300L 500L Micro Brewery Equipment Beer Brewery Machine for sale


rewing equipment, beer brewery equipment, beer machine, beer manufacturing equipment, beer equipm



Product Description









Milling SystemCapacity200KG/H
IndexStainless Steel Outshell,Double Roller,Alloy rollers

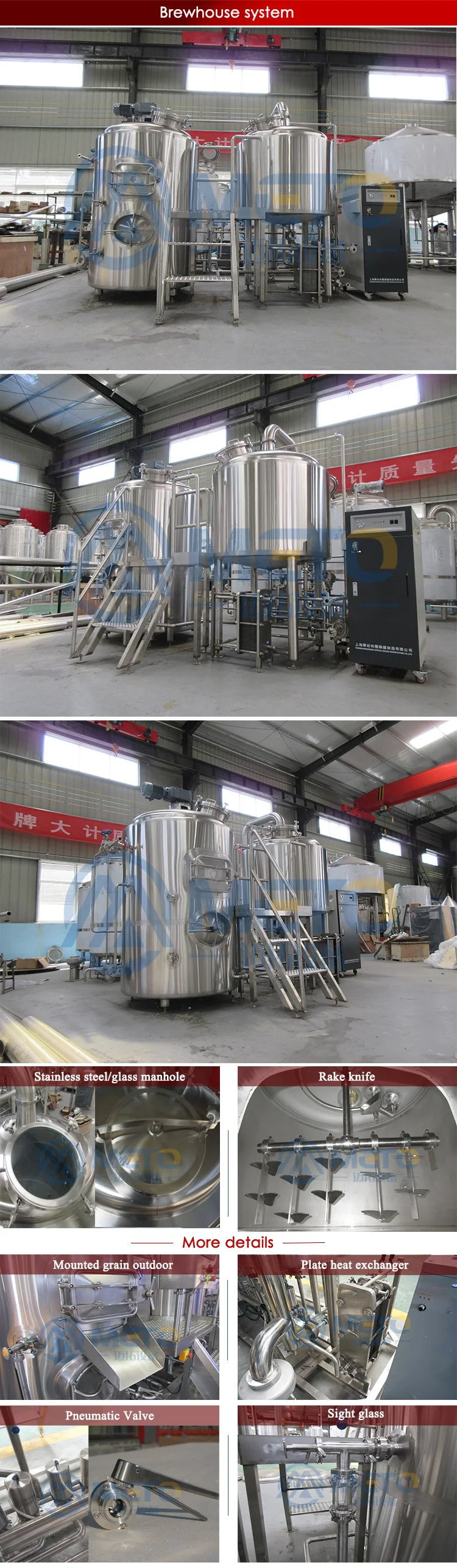

BrewhouseMaterialSUS304/316 Or red copper
Capacity3bbl
ConfigurationTwo Vessel: Mash/Lauter tank, Kettle Whirlpool tank
Combined Three Vessel:Mash/Lauter/Whirlpool tank, Kettle
Three Vessel if cutomer's demand
Heat methodElectric
Steam heating via Electric, LPG,Natural Gas and so on
ThicknessInterior thickness: 3.0mm;
Exterior 2.0mm;
Welding100% TIG welding with pure argon gas shield
Interior FinishOverall polishing to 0.4-0.6 μm without dead corner
False BottomLaser cutting V-wire False Bottom
Sieve Plate0.7 mm Strip-shaped holes, SUS304 material
Grain rakeWith fixed speed motor and turbine reducer
Temperature sensorPT100
InsulationPolyurethane-thickness:80mm.
Sparging ringEasyclean and detachable
Spraying ball360° coverage CIP Spraying ball

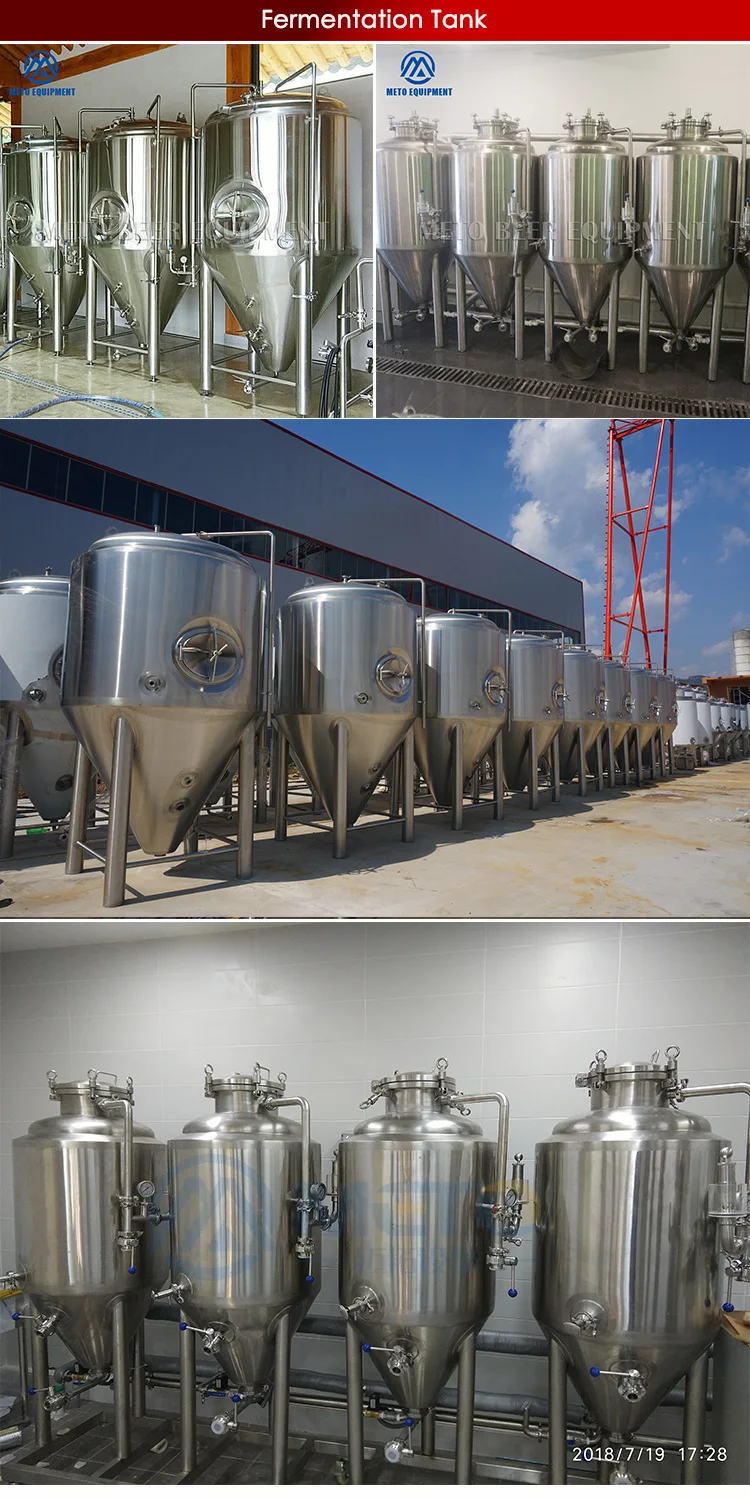

FermenterMaterialSUS304 316 Or red copper
Volume3bbl,6bbl
ThicknessInterior thickness: 3.0mm;
Exterior 2.0mm;
Welding100% TIG welding with pure argon gas shield
Interior FinishOverall polishing to 0.4-0.6 μm without dead corner
Temperature sensorPT100
Cooling mediaGlycol water or alcohol water.
Cooling jacketDimpled plate on cone and body
InsulationPolyurethane-thickness:80mm.
Spraying ball360° coverage CIP Spraying ball
Dry hopping port and
 safety valve
On the top of tank
Pressure TestStringent tank and Jacket leakage test by water and pressured gas
Test Pressure:0.3 Mpa.Three times before shipment
DischargeTri clamp discharge arm with butterfly valve
Glycol
Cooling System
Glycol water Tank10BBL
Chiller3HP
CIP SystemTwo tanks with trolley50L
Control SystemDigital panel or PLC control






Packaging & Shipping




Our Services




Project Show

 6.our customers.jpg

Company Information



7.about company.jpg9.advantages.jpg



FAQ



1.Q: Could your equipment brew both Ale and Lager?

A: Yes, all kind of beer could be brewed in our equipment.



2.Q: Im not a brewer, could I brew beer with your equipment?

A: Yes, we have the professional brewer to teach you how to brew, and we could give you the formulation after order placed.



3.Q: How long it will take to finish the production?

A: It depends on the capacity. Usually itll need 30 to 50 working days for the production and Pressure test.



4.Q: How long is the warranty?

A: Three years warranty for tanks and one years warranty for the accessories. All life service.



Q: How about the installation? Could your engineer go abroad for after-sale installation?

A: Of course. We have a engineer team of almost twenty people.The professional engineer could flight to your place for the installation and brewing first batch beer for you.
